Republic Seabee Cutaway Drawing

Home

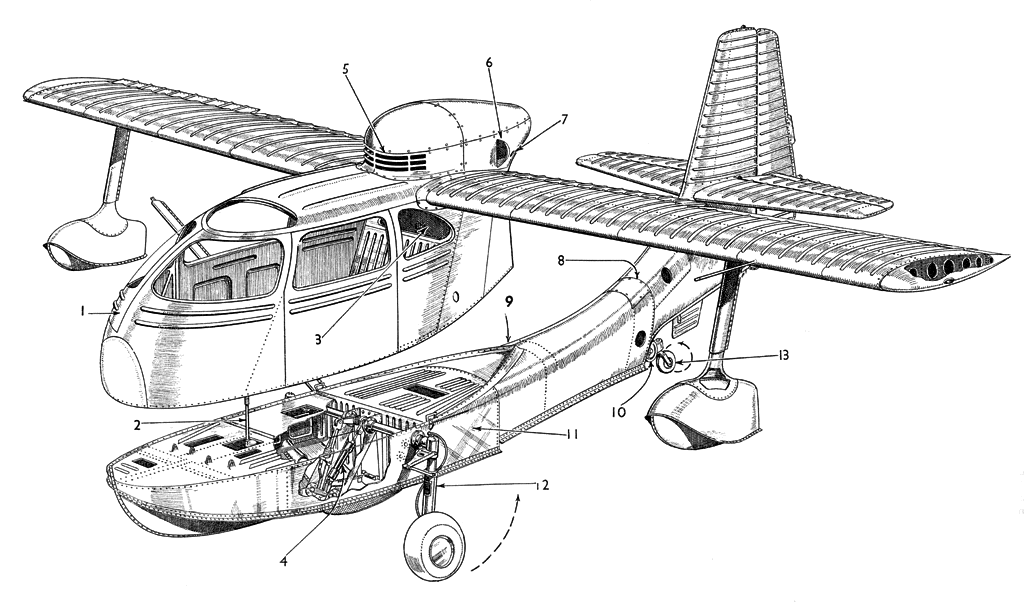

1: Large door on starboard for convenience of anglers - 2: Hydraulic hand pump operates landing gear and flaps, with selector valves for each unit - 3: Luggage space aft of bulkhead - 4: Actuating cylinder of ram operates main landing gear - 5: Cooling air intake to large blower fan - 6: Carburetor air intake - 7: Port exhaust outlet - 8: Joint line aft hull assembly - 9: Main hull assembly - 10: Friction damper - 11: 75 US gallon fuel tank built into hull here - 12: Landing gear with inverted oleo legs - 13: Tail wheel operated by separate hydraulic ram acuated by hand pump and synchronized with main gear.



General Assembly Drawn by: © Douglas Rolfe
